Self-testing clamps for barrels, tanks

Newson Gale Bond-Rite CLAMP

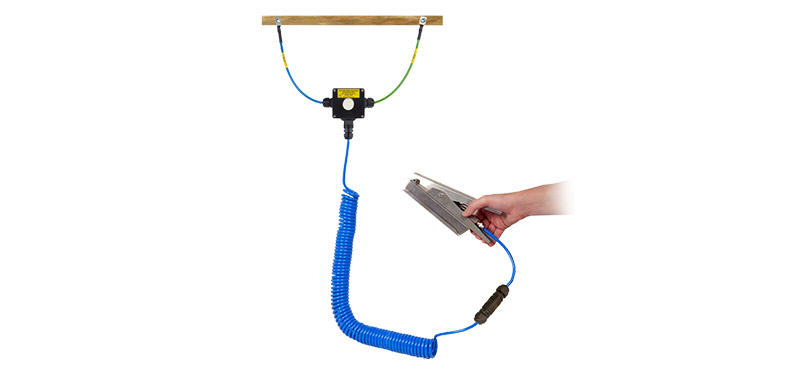

Bond-Rite CLAMP is a earthing control system mounted on a wall or other surface. It consists of a self-testing clamp with a 3 to 15 m long spiral cable and a junction box with a pin for hanging up the clamp.

Technical data

sharp teeth to ensure that the clamp breaks through a layer of rust, paint, glue, resins, grease,
quick-connector for easy disconnection of the clamp from the cable to replace batteries outside the explosion hazard zone,
system powered by a 9-volt battery built into the clamp,
the system can be used for up to 6 hours per day.

Electrostatic Earthing – the offer

Earthing control systems

Earth control systems
with process lock (tanks, big bags)

You can use them in the field of earthing monitoring of e.g. road tankers, railways, big-bags, as well as components of process plants. Earth-Rite systems verify easily and safely that the stored loads are properly discharged to the ground through a monitoring unit with a signal lightning diode. If the earthing is not performed properly, the controllers block the process.

Multiple elements earthing control system

Multiple elements
earthing control system

The MULTIPOINT II system is a device designed to control the earthing of up to 8 self-acting or interconnected system components at the same time. According to the guidelines of international standards for the control of unwanted static discharges, the correctness of earthing will only be confirmed by the system if the resistance of the earthing node on each channel is less than 10 Ω.

Clamps with earthing control

Clamps with earthing control
(IBC tanks, drums, big-bags)

We can offer you clamps with monitoring the state of earthing of barrels, tanks, etc. These solutions, in addition to earthing the equipment operating in production rooms, by means of a monitoring unit with a signalling diode, easily and safely verify that the charges accumulated on the equipment are properly discharged to earth.

Simple earthing clamps for single- and two-core cables

Clamps,
wires, spools

Earthing clamps can be used in two configurations – as a set of two simple clamps connected with each other by a spiral cable, or as a connection of the clamp to a earthed container and a ring clamp, which is located at the end of the cable, to a earthing strip.

Shoe inspection stations Ex ATEX

Shoe inspection
stations Ex ATEX

The electrified human body is one of the most serious sources that pose a fire or explosion hazard in industrial conditions. An example of a solution that checks footwear for its ability to dissipate electrostatic charges before an employee enters an area with flammable atmospheres is the Sole-Mate shoe control system.
