Immersion heater | ATEX gas zones | FP type

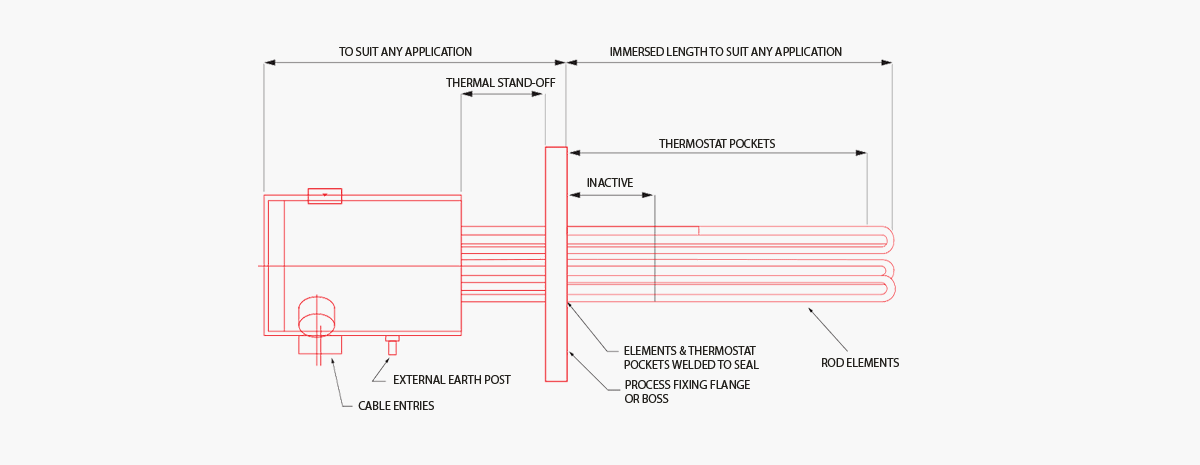

The FP electric immersion heater is ATEX-certified for use in Zone 1, 2, 21 and 22 of explosive gas or liquid vapour atmospheres. The standard versions of the product can be supplied with any electrical power source with voltage up to 690 V (600 V CSA). Each heater is provided with a terminal box for easy wiring and the overall design allows fast installation in the processing system (with a NPT/BSP threaded end or a standard connection flange).

The heater is designed for long, heavy-duty operation. The heating element is a high-quality, NiCr (80/20) resistance conductor. It is installed in a sheath of Incoloy 800 (or, optionally, stainless steel) filled with magnesium oxide powder which provides electrical insulation and an extremely good heat transfer coefficient.

The enclosure of the heater is made of mild steel (or, optionally, stainless steel) finished by powered coating (or, optionally, epoxy coating). This series of heaters is intended for various types of process media flowing in horizontal piping (there are optional heaters available for vertical installation orientation) and various types of processing equipment units.

The product is supplied with a plugged 20 mm cable gland. More cable glands can be provided on request. The standard version features overtemperature protection.

The permitted ambient operating temperature of the heaters ranges from -60˚C to +60˚C.

• ATEX: certified for operation in potentially explosive gas or dust atmospheres (Zone 1 and 2)
• Installation with an NPT/BSP threaded port or a standard connection flange
• Application: heating of process media in equipment units or horizontal piping (there are optional heaters available for vertical installation orientation)
• Supply voltage: 690 V maximum
• Casing material(s): mild steel (optionally available in epoxy topcoat)
• Heating element: high-quality NiCr resistance wire in Incoloy 800 ribbed sheath, filled with magnesium oxide powder
• Control: Ex-proof thermostat control (optional)
• Ingress protection: IP66
• Ambient temperature: -60˚C to +60˚C

• Optional protection features: thermostat controls, thermocouples or RTD sensors
• Enclosure finished with epoxy coating
• Installation orientation version for vertical pipelines
• Stainless-steel version

• Bio-fuel oil separators
• Heating boiler equipment
• Oil or water heaters
• Storage tanks
• Chemical tanks
• Refrigerating units
• Compressors
• Distillation plants
• Tank heating
• Heat exchange systems

• ATEX / IECEx    II 2 G/D Ex d IIC T1 to T6 Gb Zone 1 i 2
• ATEX / IECEx Ex tb IIIC T450°C do T85°C Db Zone 21 i 22 (IP66)
• CSA (CEC/NEC) Class I, Div 1, Grupy A, B, C, D; T1 to T6, Containing type / NEMA 4 or 4X
• CSA (CEC) Ex d IIC; T1 do T6 Gb, IP66 (CAN)
• CSA (NEC) Class I, Zone 1, AEx d IIC; T1 do T6 Gb, IP66 (USA)
• CU TR (EAC)
• KGS
• CNEx
• CCOE (CCEs)
• Inmetro
