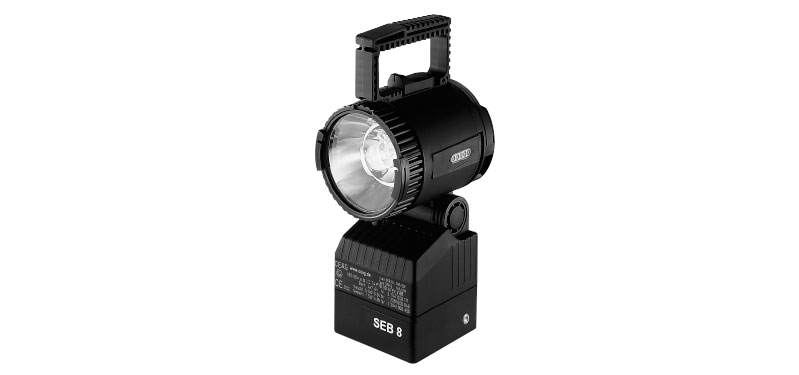

Ex-Searchlight series SEB 8 .., SEB 9 .. and SEB 10

(Zone 1, 2, 21, 22)

The explosion-protected portable searchlight series SEB 8/9/10 provides a strong and reliable light source for inspection, maintenance and repair work in almost all explosive gas and dust atmospheres. In addition to this, these searchlights with their integrated emergency lighting function can also be used for safety lighting, in the ADR version as a warning light in accordance with the traffic regulations and in the DIN version as the preferred fire service light.

Description

Technique for your safety

This extremely robust and bright series of searchlights with the high degree of protection IP 65 is ideally suited for use in all work areas with high mechanical requirements and a humid environment. They reliably supply a light intensity of more than 15,000 cd (DIN version: 12,000 cd, even after 5.5 to 7 hours operating time. Depending on the used type this is ensured by the bright 5.5 W halogen main bulb (DIN version:
4 W xenon lamp) or the two high-power LEDs of SEB 10 series together with the corresponding maintenance-free, high-performance battery.

Don’t get left in the dark

Five LEDs supply information on the current operation and charge status at all times.
Thus, the SEB 8/SEB 9/SEB 10 shows you in good time whether the battery is discharged or charged, or if it needs to be replaced. In addition, the circuit protects the electronics against deep discharge and overcharge – only the energy actually consumed is recharged. This increases the lifetime of the battery. So that the user does not get left in the dark, the searchlight automatically turns on the secondary light in the event of a filament break of the main bulb or before the end of the battery capacity.

Search and working light

The explosion-protected portable SEB 8/SEB 9/SEB 10 searchlights are suitable for control and rescue operations of fire departments and emergency services. The electronics of the lights is protected fully against electromagnetic fields (EMV) that occur, for example during the operation of radio equipment. They also comply with the EU Directive 95/54/EC concerning EMC requirements for radio interference suppression for use in motor vehicles. Especially for applications where a consistent working light is required, the slip-on prismatic lens (SEB8 / 9) or the separate work light of the SEB 10 provides a square-shaped illumination with an even light distribution – without significant losses. By fitting coloured slip-on filters they can be used also for signalling purposes.

Features

Operational safety due to the indication of the available duration
Innovative LED lens system with optimised light power (SEB 10)
Broken filament detection and automatic switch over
to secondary light for halogen version
Focussing beam – from searchlight to work light (SEB 8/9) or 2-lens system with search and work light (SEB 10)
No overcharging of the battery due to a recharge dependent
on the used capacity
High degree of protection IP65
