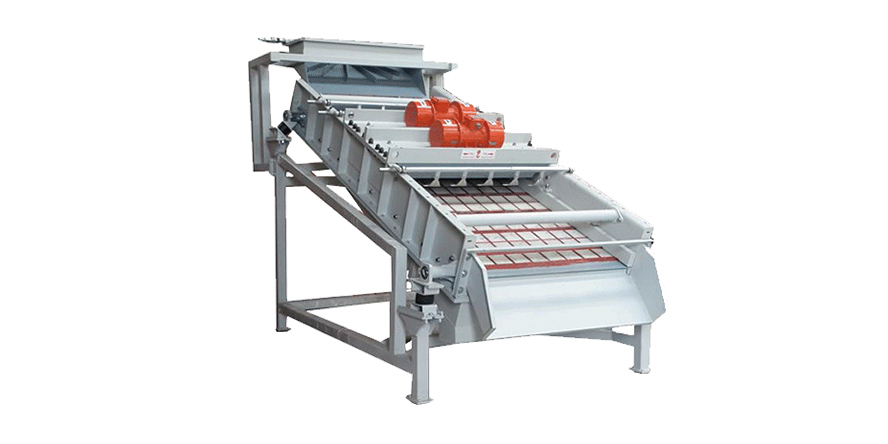

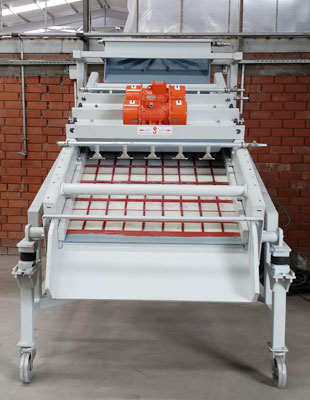

Screening machines for wet screening
We deliver screening machines for wet screening of products with granulation up to 30 mm. In screening machines for wet screening, the product fed to the screen is rinsed with water sprayed from jets located above the screen deck.
The screen for wet screening is equipped with a drive in the form of two counter rotating, unbalanced, low power motors, as well as with VFE® (Vibro-Flex Exciter) elastomer actuators. Thanks to such solution, the screening cloth vibrates with a chaotic motion that results in a possibility to effectively eliminate contamination from the screened product.
Wet screening is perfect for applications, when the material used for production possesses clay-loam contamination that may agglomerate product grains and as a result prevent their screening. Therefore, it may have a negative effect on the product’s quality, as well as on later crushing, drying or screening processes.
We will answer questions about: offer, technical specification, delivery, assembly.
The most important advantages
- Effective removal of product contamination
- No screen clogging effect
- Low energy consumption
- Simple operation and maintenance
- No transfer of vibrations to the support structure
- Assembly doesn’t require any complicated works
- Very quick and easy assembly of screening cloths without any necessity of tensioning
Screening machines for wet screening – basic information
- The screening machine is powered with the use of two counter rotating, unbalanced, low power vibrating motors (machine body vibrates with amplitude of 0,5-1 m) and VFE® elastomer actuators causing the uncoordinated motion of screening cloths
- The chaotic frequency of motion of loosely mounted screening cloths achieve a local vibration amplitude of 3-6 mm that ensures a constant cleaning of screens – self-cleaning properties
- Spray jets located above the screen decks ensure a thorough rinsing of material
- Exceptionally high accuracy of cleaning product from contamination thanks to uncoordinated vibrations with high vibration frequency at very low engine power
- Low energy consumption
- No dynamic loads transferred to the structure of hall
- Simple operation and maintenance
Screening machines for wet screening – application
The purpose of screening machines for wet screening is to remove clay-loam contamination from the material (most often rock material), which may have a negative impact on the quality of products, as well as later processes of crushing and screening. Usually the wet screening is carried out in the production of natural aggregates and to prepare a raw resource for further processing (e.g. limestone for steel industry).
Application of screening machines for wet screening according to industries:
- mineral industry
- building and road materials industry
- fertilizer industry
Application of screening machines for wet screening according to products:
- grit
- stones
- ores
- slag
- coal and coke
- quartz sand
- abrasive materials
- metallic powders
Depending on your needs, we can deliver only the screening machine for wet screening, as well as a complete line for screening your products.
- Project of screening line
- Selection of a correct screening machine
- Assembly and start-up
- Service of screening machine
